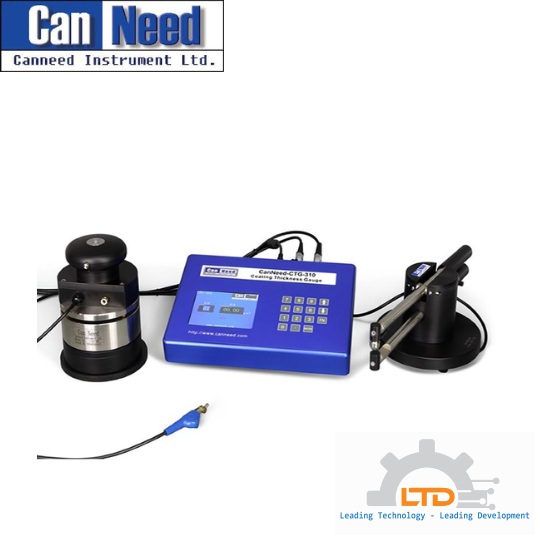

CanNeed-CTG-310 Coating Thickness Gauge is used to test the coating thickness(coating weight per unit area, g/m2). When equipped with “Hover Probe”, it can measure the coating thickness of plate sheets. When equipped with can body testing clamp, it can test the coating thickness of can body.

Use standard coating plate (sample with known weight, g/m2) calibration equipment to test different

types of coatings. Test result and coating type number will display on the screen and the data will be output to PC with RS232.

Advantages:

● Reduced lacquer consumption - With its exact calibration system bringing improved accuracies, film weight data will be precise, leading to improved control and potentially lower film weight targets.

● Greater product quality - Accurate readings also mean that coating or spray equipment will be setup and maintained more closely to the required specifications, improving the quality of, and confidence in your products.

● Better operating efficiencies - The Gauge features microprocessor control, digital readouts and data output to the printer and computer. This enables rapid yet accurate operation, reducing unproductive operator time and allowing quicker machine setups.

● Lower spoilage - The Gauge's quick operation and ability to be sited out on the production line enable test frequencies to be increased at no additional cost. Problems and trends will be spotted earlier, reducing the quantity of bad product made on the line.

Technical Parameter:

• Measure range: 0-99.99 g/m2
• Resolution: 0.01 g/m2
• Output: RS232C
• Power supply: 230V/50Hz
• Dimensions: Main unit: L320 x W230 xH110 mm
• Can holder: L385 x W184 xH132 mm
• Hover Probe: φ132*180mm
