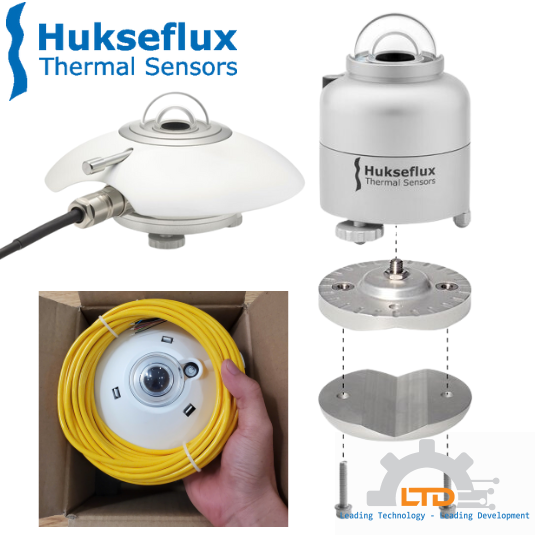

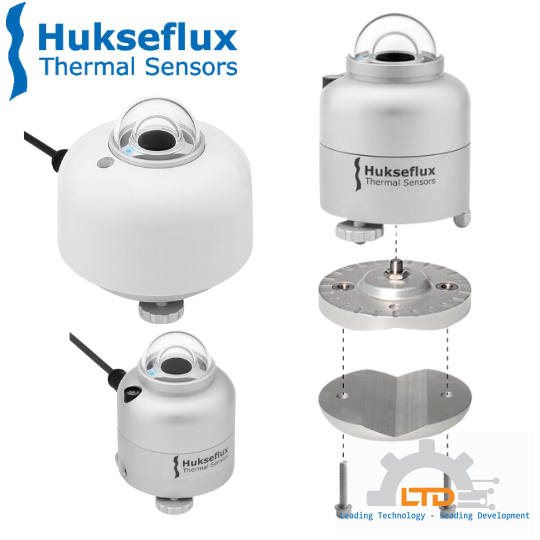

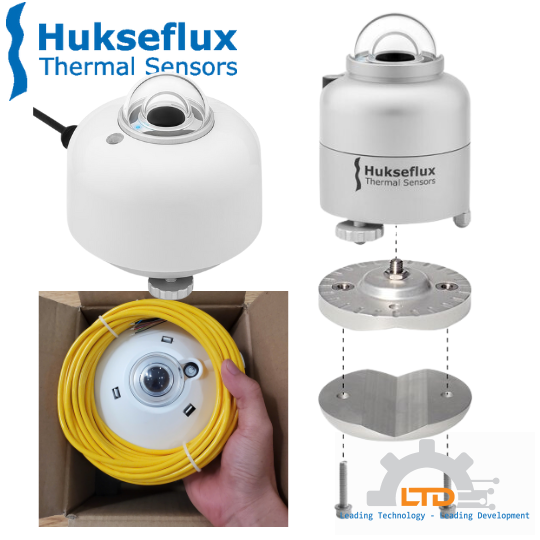

Hukx Pyranometers SR30-M2-D1, SR20-D2 and SR15-D1 – High-Accuracy Solar Radiation Measurement

Hukx develops professional solar radiation sensors, including digital and analog pyranometers for photovoltaic (PV) performance monitoring, meteorological stations, climatology and solar-energy research. The SR30-M2-D1, SR20-D2 and SR15-D1 are designed to measure hemispherical solar radiation and provide reliable irradiance data for demanding outdoor applications.

Applications of Hukx Pyranometers

A pyranometer measures solar radiation received by a plane surface over a 180° field of view, with irradiance typically expressed in W/m². These sensors are particularly important for evaluating PV plant performance, calculating solar resources, monitoring meteorological conditions and supporting long-term solar-energy studies.

The SR30-M2-D1 is suitable for high-accuracy applications such as national meteorological networks and commercial/utility-scale PV monitoring. It is a spectrally flat Class A pyranometer with heating, ventilation and a tilt sensor.

Main Models

The SR20-D2 provides a measurement range of approximately -400 to 4,000 W/m², with calibration uncertainty below 1.2% (k=2) and an operating temperature range of -40 to +80°C.

Advanced Technology for Reliable Solar Monitoring

Hukx pyranometers use spectrally flat thermopile technology to provide consistent solar irradiance measurements across a broad spectral range. The SR30-M2-D1 incorporates Recirculating Ventilation and Heating (RVH™), helping improve measurement availability in challenging environmental conditions. Its tilt sensor also supports monitoring of installation orientation.

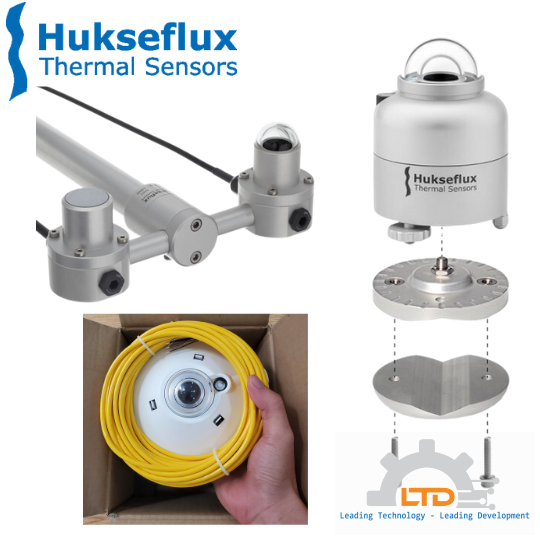

For industrial installations, the newer SR200-D1 demonstrates Hukx's focus on accuracy, electrical safety and long-term reliability, incorporating isolated RS-485 communication, internal humidity diagnostics, an earthing terminal and integrated surge protection.

Comparison of Hukx Pyranometer Solutions

The SR15-D1 offers <1.8% calibration uncertainty, a spectral range of 285–3000 nm, response time below 10 s, and Modbus RTU over 2-wire RS-485.

LTĐ – Authorized Distributor in Vietnam

LTĐ is an authorized distributor in Vietnam, providing professional support for Hukx solar radiation measurement solutions.

We provide consultation, design, installation, configuration, calibration, warranty and fast repair services, helping customers select the appropriate pyranometer according to PV plant requirements, IEC 61724-1 classification, accuracy, environmental conditions and communication architecture.
