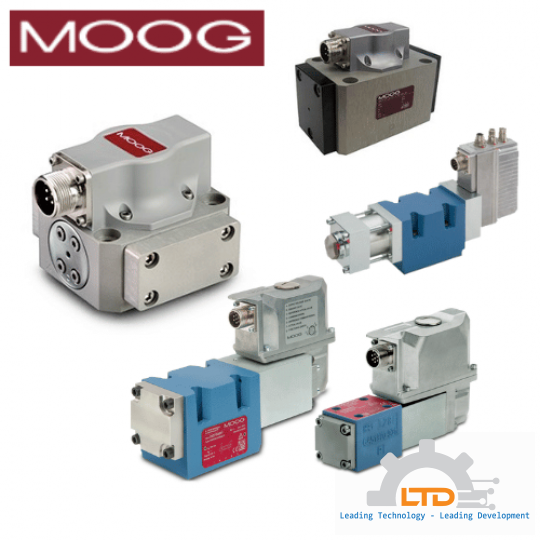

MOOG Servo Valves – High-Precision Hydraulic Control for Demanding Industrial Applications

MOOG Servo Valves are high-performance electro-hydraulic control valves designed for extremely precise control of position, speed, pressure and force. Founded in 1951, MOOG has developed more than 70 years of expertise in motion control and high-performance hydraulic valves, serving demanding industries where accuracy, dynamic response and reliability are critical.

Unlike conventional hydraulic valves, MOOG servo valves use closed-loop spool-position feedback, available in mechanical-feedback (MFB) or electronic-feedback (EFB) configurations. This technology enables highly accurate and repeatable hydraulic control for industrial machinery, steel production, metal forming, plastics machinery, test systems and other specialized applications.

MOOG Servo Valve Product Series

MOOG's current portfolio includes direct-drive and pilot-operated architectures covering different flow capacities and control requirements.

Technology Advantages: Accuracy, Safety and Durability

The 761 Series, for example, provides rated flows from 0.5 to 75 L/min, maximum operating pressure up to 350 bar, and step response below approximately 4–16 ms, depending on configuration. Its nozzle-flapper pilot stage provides high dynamics, high resolution and low hysteresis.

For higher-flow systems, the D661 Series supports approximately 20–200 L/min rated flow, up to 250 L/min maximum flow, 350 bar operating pressure and response times as fast as 6.5 ms depending on configuration.

MOOG also emphasizes long service life through precision feedback technologies and robust construction. The company's servo-valve development includes carbide feedback-ball and ball-in-hole technology designed to reduce wear; MOOG has described its long-life target as exceeding one billion cycles under appropriate conditions.

Comparison of MOOG Servo Valve Technologies

MOOG also offers fail-safe, explosion-proof and intrinsically-safe configurations for demanding or hazardous environments, depending on the selected product and certification.

Typical Applications

MOOG Servo Valves are particularly suitable for hydraulic presses, steel mills, injection molding machines, turbine control, material testing, structural test systems, flight simulation, power generation and precision motion-control equipment where conventional proportional valves cannot provide the required dynamic performance.

LTĐ – Authorized MOOG Distributor in Vietnam

LTĐ is an authorized MOOG distributor in Vietnam. We provide complete technical support including system design, product selection, installation, commissioning, configuration, calibration/testing, warranty and fast repair services.

With specialized experience in industrial automation and hydraulic motion control, LTĐ supports customers in selecting the correct MOOG Servo Valve according to flow rate, pressure, response time, feedback technology and specific operating conditions.
