MOOG G761-3033B Servo Valve – High-Precision Hydraulic Flow Control MOOG Việt Nam
LTD Automation là đại lý phân phối MOOG tại Việt Nam
==>Tại sao chọn mua MOOG tại LTD Automation:
- Uy tín tạo nên thương hiệu
- Sản phẩm chính hãng 100%
- Hỗ trợ chính sách toàn diện về hậu mãi
- Sản phẩm được bảo tối thiểu 12 tháng
Liên hệ tư vấn:
- 0912 300 549
- sale02@ltdautomation.com.vn

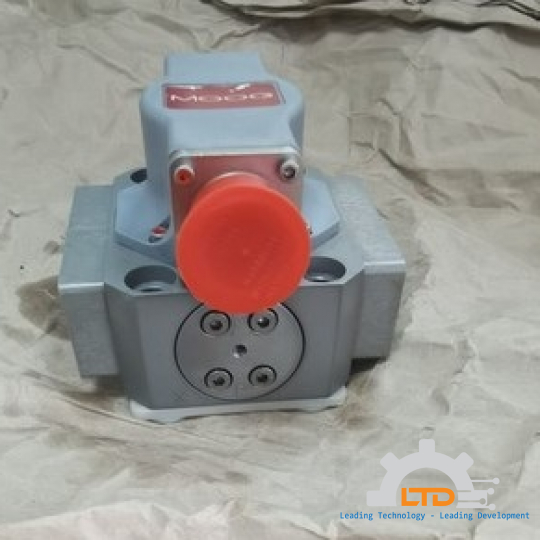

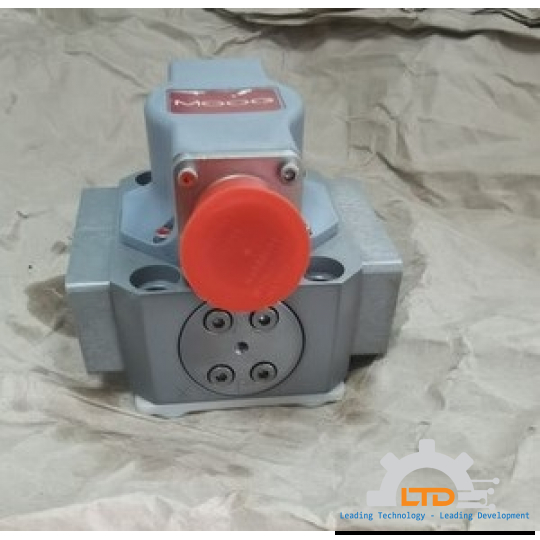

MOOG G761-3033B Servo Valve is a high-performance electro-hydraulic servo valve designed for applications requiring extremely accurate control of hydraulic flow, actuator position, velocity, pressure and force. Moog, founded in 1951, pioneered practical electrohydraulic servo valve technology and today provides precision motion-control solutions for aerospace, defense, industrial automation and demanding test applications.
The G761-3033B belongs to the 761 Series Mechanical Feedback (MFB) Servo Valves, featuring a two-stage design and analog electrical input. Based on Moog's current 761 Series catalog, the corresponding G761-3003B configuration is rated at 19 L/min (5 gpm) with a ±40 mA command signal. The G761-3033B should therefore be verified against the complete ordering code/nameplate before replacement, because suffixes define important hydraulic and electrical configurations.
| Model | Rated Flow | Rated Current | Typical Application |
|---|---|---|---|
| G761-3001B | 4 L/min | ±40 mA | Precision low-flow control |
| G761-3002B | 10 L/min | ±40 mA | Industrial hydraulic control |
| G761-3003B | 19 L/min | ±40 mA | High-dynamic actuator control |
| G761-3004B | 38 L/min | ±40 mA | Large hydraulic actuators |
| G761-3005B | 63 L/min | ±40 mA | High-flow industrial systems |
The 761 Series covers rated flows from approximately 0.5 to 75 L/min, with standard configurations of 4, 10, 19, 38 and 63 L/min.
The key advantage of the G761 family is its two-stage nozzle-flapper pilot technology combined with mechanical spool feedback. This architecture provides high dynamics, high resolution and low hysteresis while maintaining a rugged construction for long service life. The spool-in-bushing design is also intended to deliver excellent dynamic performance and accuracy.
The 761 Series supports maximum operating pressures up to 315 bar (4,500 psi) with aluminum bodies and 350 bar (5,000 psi) with steel bodies, with 100% step response of less than approximately 4–16 ms, depending on configuration.
Moog has also developed long-life feedback technology using carbide components to reduce wear. The company reports testing feedback components to one billion cycles, highlighting the emphasis on durability and long-term precision.
| Series | Rated Flow | Max. Pressure | Key Strength |
|---|---|---|---|
| 31 Series | 3.8–15 L/min | 275 bar | Ultra-compact, up to 200 Hz |
| 32 Series | 15.1–30.2 L/min | 275 bar | Compact, high dynamic response |
| 761 Series | 0.5–75 L/min | 315/350 bar | Precision MFB, rugged, long life |
| 72 Series | 95–225 L/min | Up to 490 bar | Very high flow & pressure |
| 78 Series | 75–150 L/min | 210 bar | High-flow industrial control |
MOOG G761 servo valves are particularly suitable for metal forming presses, steel production, plastics machinery, turbine control, hydraulic test systems, fatigue testing and precision motion-control equipment—applications where response speed, repeatability and long-term reliability are critical.
LTĐ – Authorized Distributor of MOOG in Vietnam provides professional support including selection, system design, installation, commissioning, calibration/testing, warranty and fast repair services. We support customers in selecting and replacing the correct MOOG G761 Servo Valve according to hydraulic pressure, flow rate, command signal and machine requirements.
