Swith 60-30G 60-31G Thermo Scientific USA, 6030G 6031G Thermo Ramsey tại Việt Nam

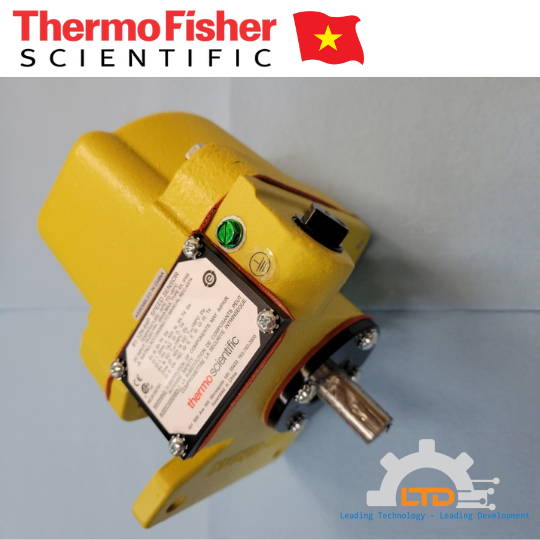

The Thermo Scientific Pro-Line 6031G Safety Pull-cord Switch is a specialized safety pull-cord switch designed to protect operators and equipment in industrial conveyor systems. The product fully meets international safety standards and is suitable for installation in heavy industrial environments, harsh conditions, and demanding reliability requirements.

Function of the 6031G seatbelt pull switch

The 6031G safety cable pull switch allows for emergency stopping of the conveyor belt in case of an accident or hazard. Operators simply pull the cable from any point along the conveyor belt to activate the switch, helping to prevent workplace accidents , minimize machinery damage, and ensure production safety.

Thermo Scientific recommends one switch for every 50 meters of conveyor belt (25 meters on each side), optimizing installation costs while ensuring a quick response in emergency situations.

Practical applications

The Safety Pull-cord Switch 6031G is widely used in:

• Conveyor systems for coal, cement, and minerals.

• Steel plant , thermal power plant, chemical plant

• Food industry , logistics, warehousing

• Automated production lines require remote emergency shutdown.

The device can be installed horizontally or vertically , offering flexibility with various conveyor configurations.

Key Specifications

• Model: 6031G – Pro-Line

• Mechanism: The lever has two connecting pins made of steel wire, operated from both sides.

• Activation angle: 18° ±2 (bidirectional)

• Contacts: 2 micro-switches, each with 1 NO + 1 NC

• Rated current:

  • 6A @ 250V (AC15)

  • 10A @ 30V (DC13)

• Standard: IEC/EN 60947-5-1 – Positive Break Function

• Case material: Painted die-cast aluminum

• Protection rating: IP65

• Operating temperature: -45°C to +85°C

• Cable ports: 3 x M20x1.5

• Terminal block: 10 spring terminals (wire ≤ 2.5 mm²)

• Safety features: Mechanical reset button prevents remote restart.

Comparison table of product model/code 6031G
