GRA200-F-S4-MG-PET

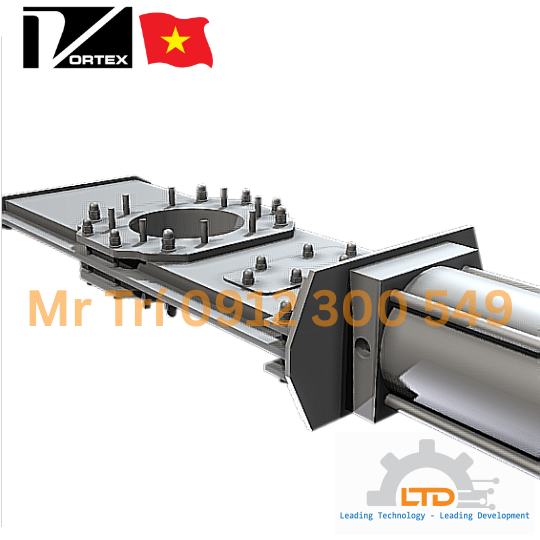

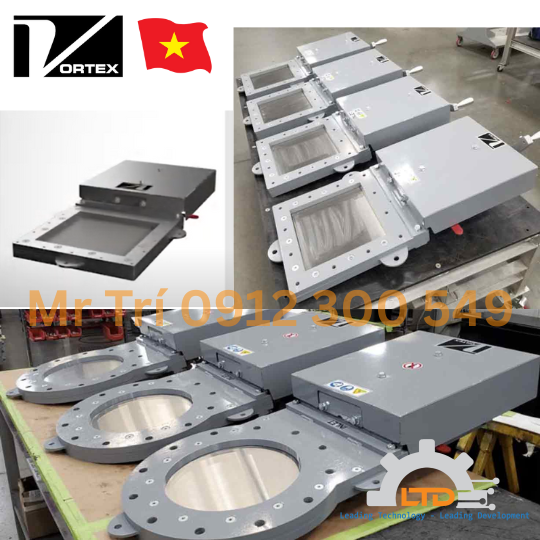

Vortex Model No.GRA200-F-S4-MG-PET, 200mm Quantum Series Orifice Gate Valve.
Aluminum valve body with live loaded, wear compensating seals, a 304 stainless steel
blade, main flange and orifice liners. Material contact is 304 stainless steel and polymer.
• Oversized double acting air cylinder actuator
• Inlet and outlet has threaded studs for flange connection.
• (MG) - Air cylinder is equipped with a magno-piston for use with magnetic reed position
indication switches.
• (PET) - Valve is rated for 180˚F(82˚C) maximum continuous service. PET pressure plates are
backed with a foam void filler and live loaded natural rubber load seals. Valve is supplied
with 3/16" foam flange gaskets.
• Valve has boss welded into main body to accept proximity switches.

GRFISS-8
8" Special Service Inlet, 304 stainless steel construction, eliminates material packing and
reduces wear on seals; should be used when closing on abrasive, potentially sticky,
pelletized, or granular materials, (adds 3/16" to OAH of valve). NOTE: RECOMMENDED
WHEN VALVE IS INSTALLED IN HORIZONTAL PLANE. NOT RECOMMENDED WHEN VALVE IS
TO BE INSTALLED VERTICALLY.

2F375-24ES1-24VDC
Air Control Assembly, single solenoid, 24v DC/1.5 W, IP 65, G 3/8 ports, flow rate 3200
l/min, includes Polyurethane tubing, fittings and mounting brackets.

2CC1A-SPST
Magnetic Reed Switch, SPST, Normally Open, NEMA 6 IP67, CSA Approved, 5-240 Volts
VDC/VAC 50/60Hz, 2 wire output, 30 W/1 AMP Max, LED indication light, 9 foot PVC cable.
CAUTION: Do not exceed rated wattage/current, permanent damage to sensor may occur.
